Product parameter table
Standard: External power supply type is simple and efficient, with high reliability and equipment maintenance
Product model QY-HP300
Processing capacity 150-230t/h
Main engine power 250kw
Total power 298kw
Equipment size (length * width * height) 16850*3650*3800mm
Feed belt 11kw
Return material transition belt 3kw
Main belt 15kw
Feed port size 1078mm
Return material belt 5.5hw
Return material belt 5.5hw
Hopper volume 5m
Total equipment weight 48t
Vibration hanging screen 6kw
Maximum feed size <250mm (recommended)
-
Standard: External power supply type is simple and efficient, with high reliability and equipment maintenance
Optional: Oil and electricity

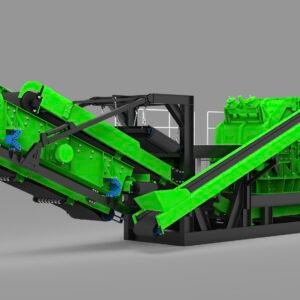

Product model QF-1380
Processing capacity 150-230t/h
Main engine power 250kw
Total power 297kw
Equipment size (length*width*height) 15800*3450*3760mm
Iron remover 4kw
Feed hopper 6kw
Feed port size 1380*1000mm
Vibrating screen 6kw
Main belt 15KW
Finished product belt 7.5kw
Return material transition belt 3kw
Return material belt 5.5kw
Hopper volume 6m3
Total equipment weight 48t
Maximum feed size <650mm (recommended)
-
Product parameter table
Processing capacity 150-230t/h
Main engine power 250kw
Total power 297kw
Equipment size (length*width*height) 15800*3200*3000mm
Iron remover 4kw
Feed hopper 6kw
Main belt 15kw
Feed port size 1380*1000mm
Vibrating screen 6kw
Finished belt 7.5kw
Return material transition belt 3kw
Return material belt 5.5kw
Hopper volume 6m3
Total equipment weight 42t
Maximum feed size <650 (recommended)
-
Product parameter table
Standard configuration: External power supply type is simple and efficient, with high reliability and low equipment maintenance and operation costs. Oil-electric dual-purpose equipped with a 400kw engine.
Product model QF-1540
180-350t/h
Processing capacity
Main engine power 315kw
Total power 362kw
Equipment size (length*width*height) 15800*3450*3760mm
Iron remover 4kw
Feed hopper 6kw
Feed port size 1520*1000mm
Vibrating screen 6kw
Main belt 15KW
Finished product belt 7.5kw
Return material transition belt 3kw
Return material belt 5.5kw
Hopper volume 3m3
Total equipment weight 50t
Maximum feed size <800mm (recommended)
-
Product parameter table
Product model QZ-TV85
Processing capacity 80-200t/h
Host power 220-440kw
Total power 242kw
Equipment size (length * width * height) 14500 * 3200 * 3700mm
Finished conveyor belt 11kw
Transfer feeder 11KW
600mm in feed inlet size
Hopper capacity 3m3
Total weight of equipment 35t
Maximum feed size<40mm (recommended)
-
Product parameter table
Standard configuration: External power supply type is simple and efficient, with high reliability and low equipment maintenance and operation costs. Oil-electric dual-purpose equipped with 250KW engine
Product model QE-106
Processing capacity 180-400t/h
Main engine power 110kw
Total power 135kw
Equipment size (length * width * height) 14850*3100*3900mm
Iron remover 4kw
Feed hopper 6kw
Main belt 15kw
Feed port size 1060*750mm
Feeding capacity 400/t
Hopper volume 6m3
Total equipment weight 38t
Maximum feed size <700mm (recommended)
-
Product parameter table
Standard configuration: External power supply type is simple and efficient, with high reliability and low equipment maintenance and operation costs. Oil-electric dual-use equipped with 120kw engine.
Product model QS-6518
QS-7518
Processing capacity 150-280t/h
180-320t/h
Screen box power 15kw
18kw
Total power 50kw
53kw
Equipment size (length*width*height) 13800*3630*3850mm
14800*3630*3850mm
Finished belt 2:5.5kw
2:5.5kw
Finished belt 2:5.5kw
2:5.5kw
Finished belt 3:5.5kw
3:5.5kw
Screen belt 7.5kw
7.5kw
Feeding capacity 250t/h
300t/h
Screen box size 6500*1800
7500*1800
Feed conveyor 11KW
11KW
Total equipment weight 28t
30t
-

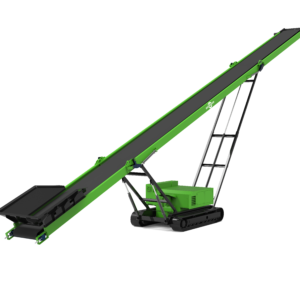

Crawler type mobile conveyor
Feeding system
Feeding capacity: 200-450t/h
Feeding height: 1700mm 11500
Hopper capacity: 3m
Main belt
Unloading height: 8800mm Transportation status
Length * width: 22000 * 1000mm Working angle: 0-22 °
complete machine
Diesel engine power: 66kw Track brand: Strickland Engine brand: Weichai Drive method: Hydraulic drive Transport capacity: 200-450t/h
Working dimensions (length * width * height): 21300 * 2200 * 9400 mm Transportation dimensions (length * width * height): 11500 * 2200 * 2200 mm When connected to an external power source
Motor power: 35 kW
working condition
Start method: Variable frequency start
Drive mode: 35kw motor drives hydraulic oil pump to drive conveyor belt motor
-
Product parameter table
Standard configuration: External power supply type is simple and efficient, with high reliability and low equipment maintenance and operation costs. Oil-electric dual-use equipped with 120 engine.
Product model QZX-550
Processing capacity 220-400t/h
Screen box power 15kw
Total power 52kw
Equipment size (length * width * height) 14100*3400*3800mm
Finished product conveyor belt 1:7.5kw
Finished product conveyor belt 2:5.5kw
Finished product conveyor belt 3:5.5kw
Auxiliary material conveyor belt 7.5kw
Screen box size 5000*1500
Feed conveyor 11KW
Total equipment weight 32t
-
Product parameter table
Standard configuration: external power supply type is simple and efficient, with high reliability and equipment maintenance
Product model QSP-6200
Processing capacity 220-400h
Main engine power 30k
Total power 69kw
Equipment size (length * width * height) 18500*3960*3900mm
Finished product conveyor belt 1:7.5kw
Finished product conveyor belt 2:5.5kw
Finished product conveyor belt 3:5.5kw
Auxiliary material conveyor belt 7.5kw
Screen box size 6200*1930
Conveyor feeder 7.5kw
Hopper volume 3m
Finished product conveyor belt 4:5.5KW
Total equipment weight 35t
The latest update introduction shall prevail.
-

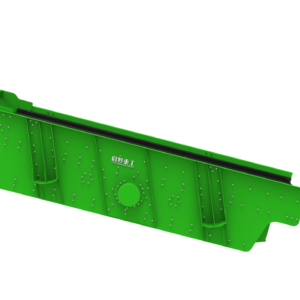

QS-1550 Number of sieve layers:2/3 sieve size:1520×5000mm sieve inclination angle:0-10° double amplitude:5-16mm maximum feeding size:300mm weight:4.3t motor power:2×11kw speed:750-100rpm
QS-1842 Number of sieve layers:2/3 sieve size:1820×4200mm sieve inclination angle:0-10° double amplitude:5-16mm maximum feeding size:300mm weight:4.5t motor power:2×11kw speed:750-100rpm
QS-1850 Number of sieve layers:2/3 sieve size:1820×6000mm sieve inclination angle:0-10° double amplitude:5-16mm maximum feeding size:300mm weight:5.1t motor power:2×11kw speed:750-100rpm
QS-2160 Number of sieve layers:2/3 sieve size:2120×6000mm sieve inclination angle:0-10° double amplitude:5-16mm maximum feeding size:300mm weight:6.6t motor power:2×11kw speed:750-100rpm
-
QF-1380 Maximum feeding edge length:700mm Processing capacity:150-230t/h Motor power:200-280kw Length x Width x Height:2900×2300×2860mm Weight (excluding motor):22.2t
QF-1313 Maximum feeding edge length:700mm Processing capacity:180-250t/h Motor power:250-315kw Length x Width x Height:3250×2300×2680mm Weight (excluding motor):23.5t
QF-1540 Maximum feeding edge length:800mm Processing capacity:180-350t/h Motor power:250-315kw Length x Width x Height:2900×2450×2860mm Weight (excluding motor):28t
-

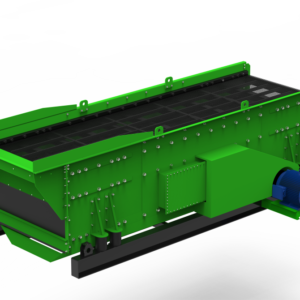

QS-1548 Sieve layer: 2/3 Sieve size: 1500 x 4800mm Sieve inclination angle: 18-20 ° Double amplitude: 5-17mm Maximum feed size: 300mm Weight: 5.6T Motor power: 2 x 7.5kw Speed: 600-1100rpm
QS-6518 Sieve layer: 2/3 Sieve size: 1800 x 6000mm Sieve inclination angle: 18-20 ° Double amplitude: 5-17mm Maximum feed size: 300mm Weight: 7.4 Motor power: 2 x 7.5WU Speed: 600-1100rpm
QS-2160 Sieve layer: 2/3 Sieve size: 2100 x 6000mm Sieve inclination angle: 18-20 ° Double amplitude: 5-17mm Maximum feed size: 300mm Weight: 8T Motor power: 2 x 15kW Speed: 600-1100rpm
QS-2460 Sieve layer: 2/3 Sieve size: 2400 x 6000mm Sieve inclination angle: 18-20 ° Double amplitude: 5-17mm Maximum feed size: 300mm Weight: 9t Motor power: 2 x 15kW Speed: 600-1100rpm
-

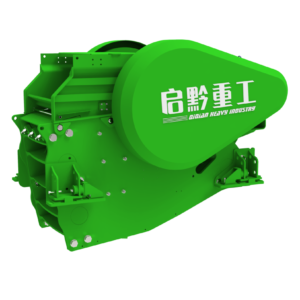

QE-106 material trough size: 750 × 1060mm, discharge port adjustment range: 70.0-200mm, processing capacity: 52-208t/h, electromechanical power: 110kw double weight: 14-32t
QE-116 material chute size: 1100-4900mm Discharge port adjustment range: 100-200mm Processing capacity: 165-520t/h electromechanical power: 120-132kw Double weight: 19-41t
QE-120 material trough size: 1134-5900mm, discharge port adjustment range: 100-200mm, processing capacity: 140-304t/h, electromechanical power: 110-132kw, double weight: 26-57t
QE-130 materialchute size: 1500-6000mm, discharge port adjustment range: 100-250mm, processing capacity: 270-830t/h, electromechanical power: 110-160kw, double weight: 40-89t
-

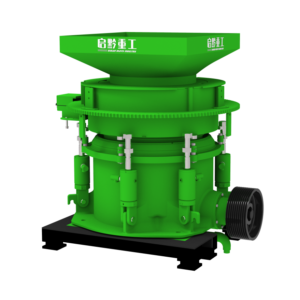

QY-200 Dynamic cone diameter:940mm Maximum feeding force:132mm Processing capacity:90-250t/h Maximum recommended power:132kw Transmission shaft speed:700-1200rpm Weight:12.16t
QY-300 Dynamic cone diameter:1120mm Maximum feeding force:220mm Processing capacity:115-440t/h Maximum recommended power:220kw Transmission shaft speed:700-1200rpm Weight:18.1t
QY-400 Dynamic cone diameter:1320mm Maximum feeding force:275mm Processing capacity:140-630t/h Maximum recommended power:315kw Transmission shaft speed:700-1200rpm Weight:25.6
QY-500 Dynamic cone diameter:1520mm Maximum feeding force:315mm Processing capacity:175-790t/h Maximum recommended power:335kw Transmission shaft speed:700-950rpm Weight:37t
-

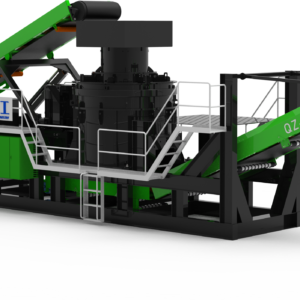

Product parameter table
Product model ZQ-TV85G
Processing capacity 80-200t/h
Host power 220-440kw
Total power 242kw
Equipment size (length * width * height) 14500 * 3200 * 3700mm
Finished conveyor belt 11kw
Transfer feeder 11KW
600mm in feed inlet size
Hopper capacity 3m3
The total weight of the equipment is 30t
Maximum feed size<40mm (recommended)
