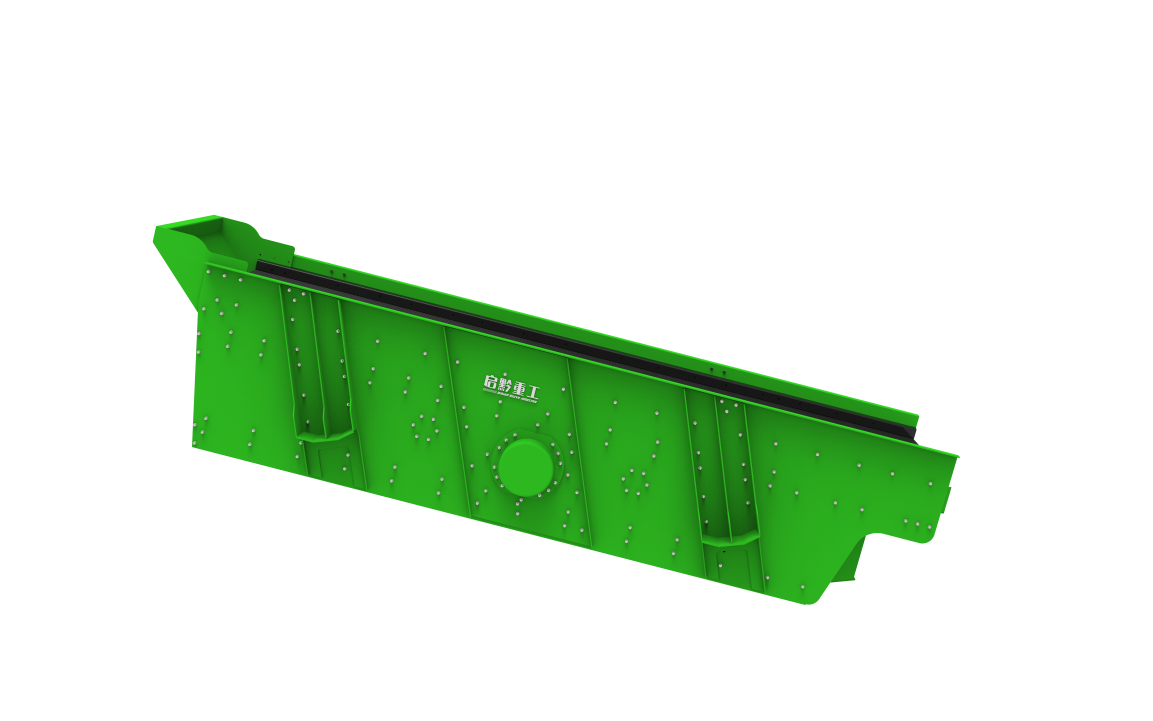

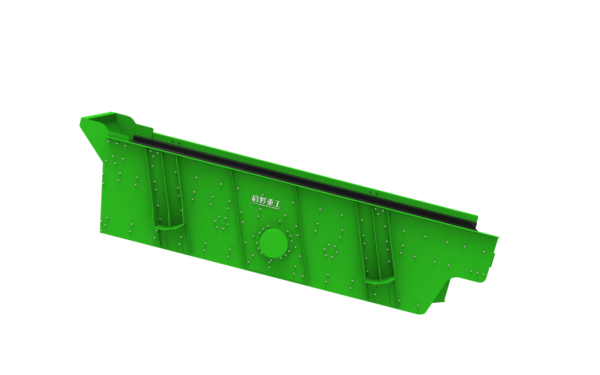

Inclined vibrating screen
QS-1548 Sieve layer: 2/3 Sieve size: 1500 x 4800mm Sieve inclination angle: 18-20 ° Double amplitude: 5-17mm Maximum feed size: 300mm Weight: 5.6T Motor power: 2 x 7.5kw Speed: 600-1100rpm
QS-6518 Sieve layer: 2/3 Sieve size: 1800 x 6000mm Sieve inclination angle: 18-20 ° Double amplitude: 5-17mm Maximum feed size: 300mm Weight: 7.4 Motor power: 2 x 7.5WU Speed: 600-1100rpm
QS-2160 Sieve layer: 2/3 Sieve size: 2100 x 6000mm Sieve inclination angle: 18-20 ° Double amplitude: 5-17mm Maximum feed size: 300mm Weight: 8T Motor power: 2 x 15kW Speed: 600-1100rpm
QS-2460 Sieve layer: 2/3 Sieve size: 2400 x 6000mm Sieve inclination angle: 18-20 ° Double amplitude: 5-17mm Maximum feed size: 300mm Weight: 9t Motor power: 2 x 15kW Speed: 600-1100rpm
Description
Product Introduction
Specially designed for heavy working conditions in gravel aggregates and metal mines. Adopting a modular and series design, there are two or three layer screen configurations, as well as water washing and spraying devices to choose from. The amplitude, frequency, and tilt angle can be easily adjusted according to actual production needs.
