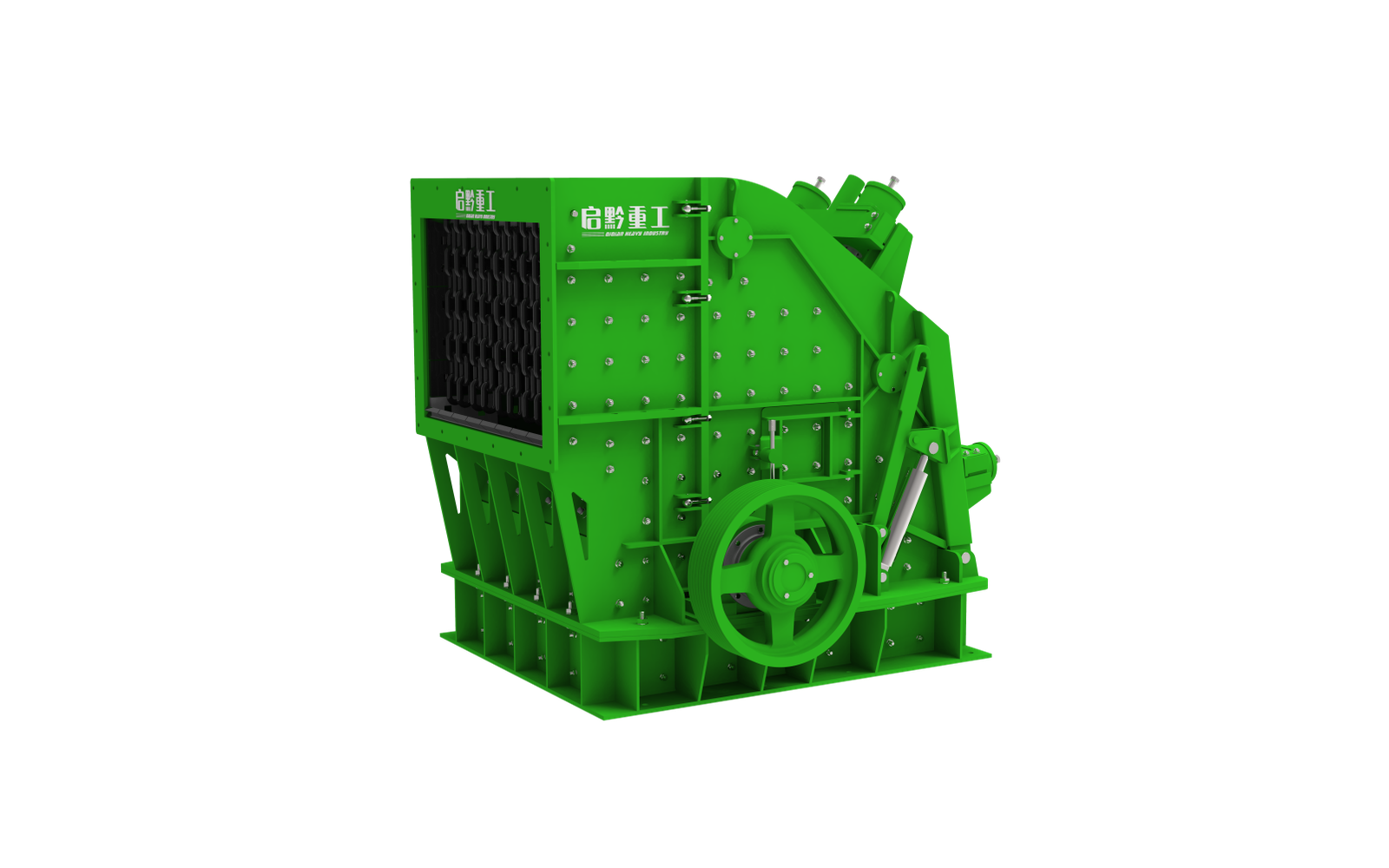

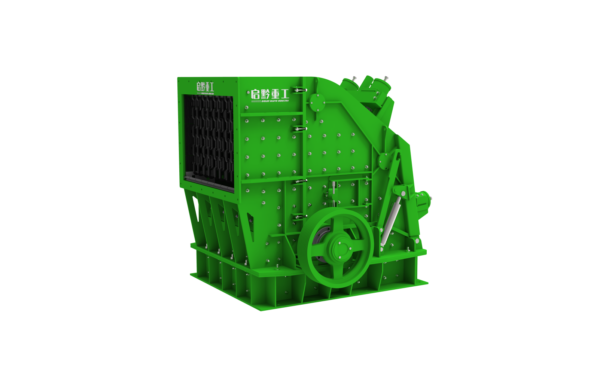

Impact crusher
QF-1380 Maximum feeding edge length:700mm Processing capacity:150-230t/h Motor power:200-280kw Length x Width x Height:2900×2300×2860mm Weight (excluding motor):22.2t
QF-1313 Maximum feeding edge length:700mm Processing capacity:180-250t/h Motor power:250-315kw Length x Width x Height:3250×2300×2680mm Weight (excluding motor):23.5t
QF-1540 Maximum feeding edge length:800mm Processing capacity:180-350t/h Motor power:250-315kw Length x Width x Height:2900×2450×2860mm Weight (excluding motor):28t
Description
Product Introduction
This series of crushers has a 45 ° feed chute and is equipped with replaceable lining plates. The main body can be opened by a hydraulic device. The thick hammer is fixed in a replaceable fixed seat by a fixed block. All lining plates are interchangeable. Positive rotor locking device; Ensure the safety of personnel replacing the rotor. This crusher has a sturdy and tough shaft, a replaceable hammer fixing seat, and is suitable for working with various ores, rocks (such as granite, marble, limestone) and other materials. The product produced has a good shape and a low proportion of needle shaped leaves.
