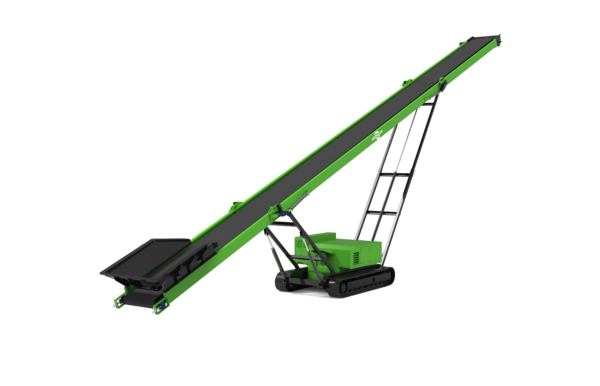

Crawler type mobile conveyor RD2210

Crawler type mobile conveyor
Feeding system
Feeding capacity: 200-450t/h
Feeding height: 1700mm 11500
Hopper capacity: 3m
Main belt
Unloading height: 8800mm Transportation status
Length * width: 22000 * 1000mm Working angle: 0-22 °
complete machine
Diesel engine power: 66kw Track brand: Strickland Engine brand: Weichai Drive method: Hydraulic drive Transport capacity: 200-450t/h
Working dimensions (length * width * height): 21300 * 2200 * 9400 mm Transportation dimensions (length * width * height): 11500 * 2200 * 2200 mm When connected to an external power source
Motor power: 35 kW
working condition
Start method: Variable frequency start
Drive mode: 35kw motor drives hydraulic oil pump to drive conveyor belt motor
