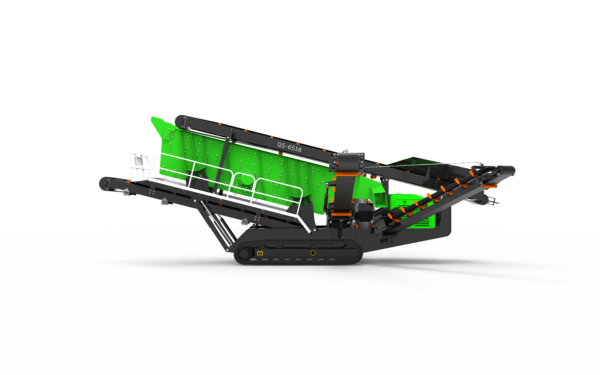

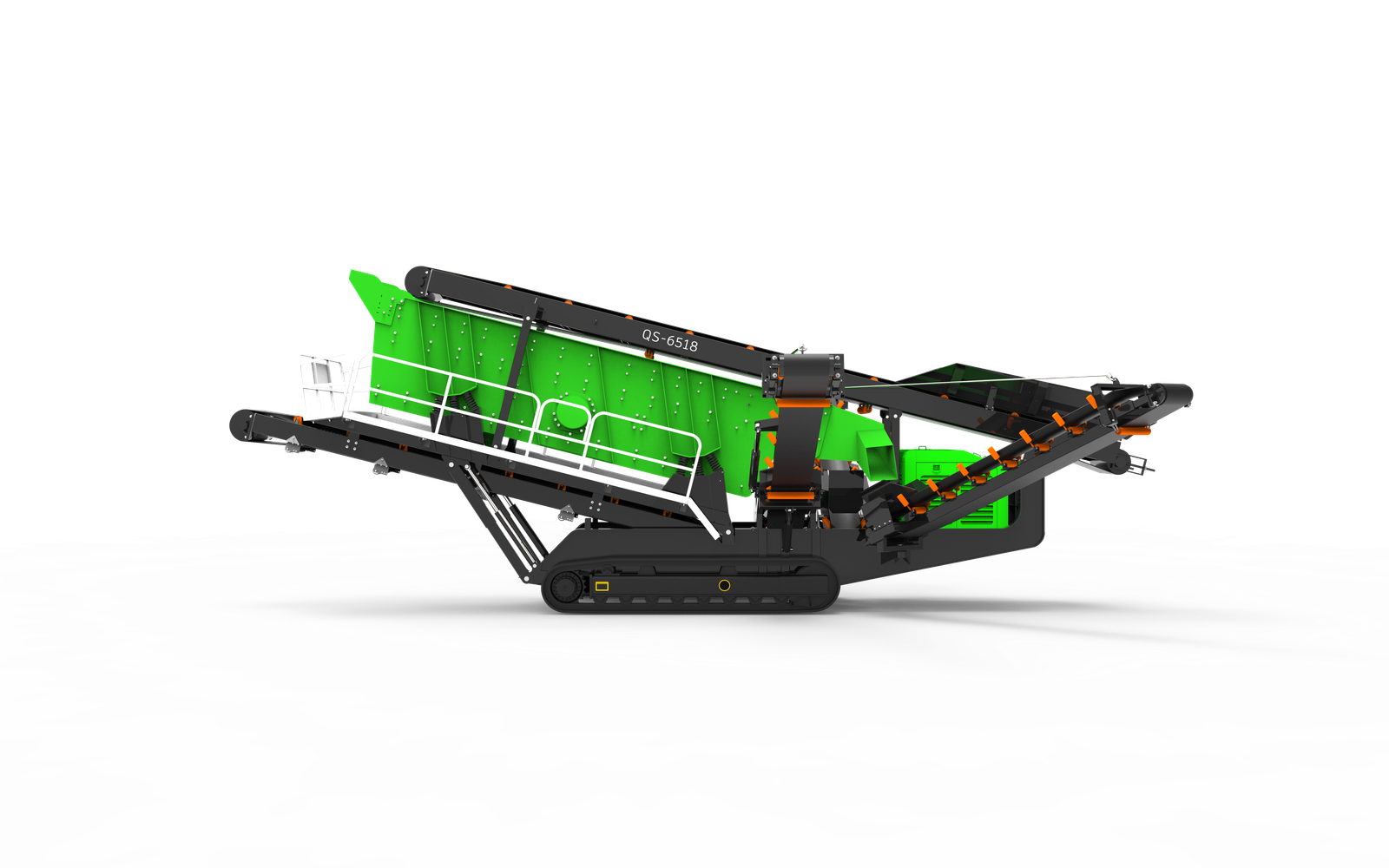

Crawler mobile tilt screening station QS-6518/QS-7518
Product parameter table
Standard configuration: External power supply type is simple and efficient, with high reliability and low equipment maintenance and operation costs. Oil-electric dual-use equipped with 120kw engine.
Product model QS-6518
QS-7518
Processing capacity 150-280t/h
180-320t/h
Screen box power 15kw
18kw
Total power 50kw
53kw
Equipment size (length*width*height) 13800*3630*3850mm
14800*3630*3850mm
Finished belt 2:5.5kw
2:5.5kw
Finished belt 2:5.5kw
2:5.5kw
Finished belt 3:5.5kw
3:5.5kw
Screen belt 7.5kw
7.5kw
Feeding capacity 250t/h
300t/h
Screen box size 6500*1800
7500*1800
Feed conveyor 11KW
11KW
Total equipment weight 28t
30t
Description
Advantages and features
Unique double-stage screen technology
Innovative double-stage screen technology, the screen body can change operation at multiple angles, greatly improving the screening efficiency
Simple operation and easy maintenance
The whole machine is fully hydraulically driven, and the speed can be quickly adjusted for various heavy-load conditions to meet various needs.
Intelligent all-round safety protection
The ASP all-round protection system is adopted, and the security accessories around the equipment are matched to ensure the safety of personnel during the operation process. The operation is simple and easy to maintain. The structure is stable and adaptable.
Advanced hydraulic lubrication system: The main crusher lubrication system and hydraulic system are modularly designed, and each operates independently, which can realize oil temperature, flow, pressure, power, abnormal power supply and other protections. Uses of inclined screening station
This product is suitable for screening of ores and various varieties that need to be classified in industries such as mining, water conservancy, transportation, railways, cement, building materials, metallurgy, chemical industry, electricity, and construction. The mobile screening station is a high-efficiency screening equipment that adopts crawler drive walking mode, with advanced technology and complete functions. Due to its optimized unique dynamic design and intelligent process control system, it has a strong, durable, stable and reliable high-efficiency development capability.
