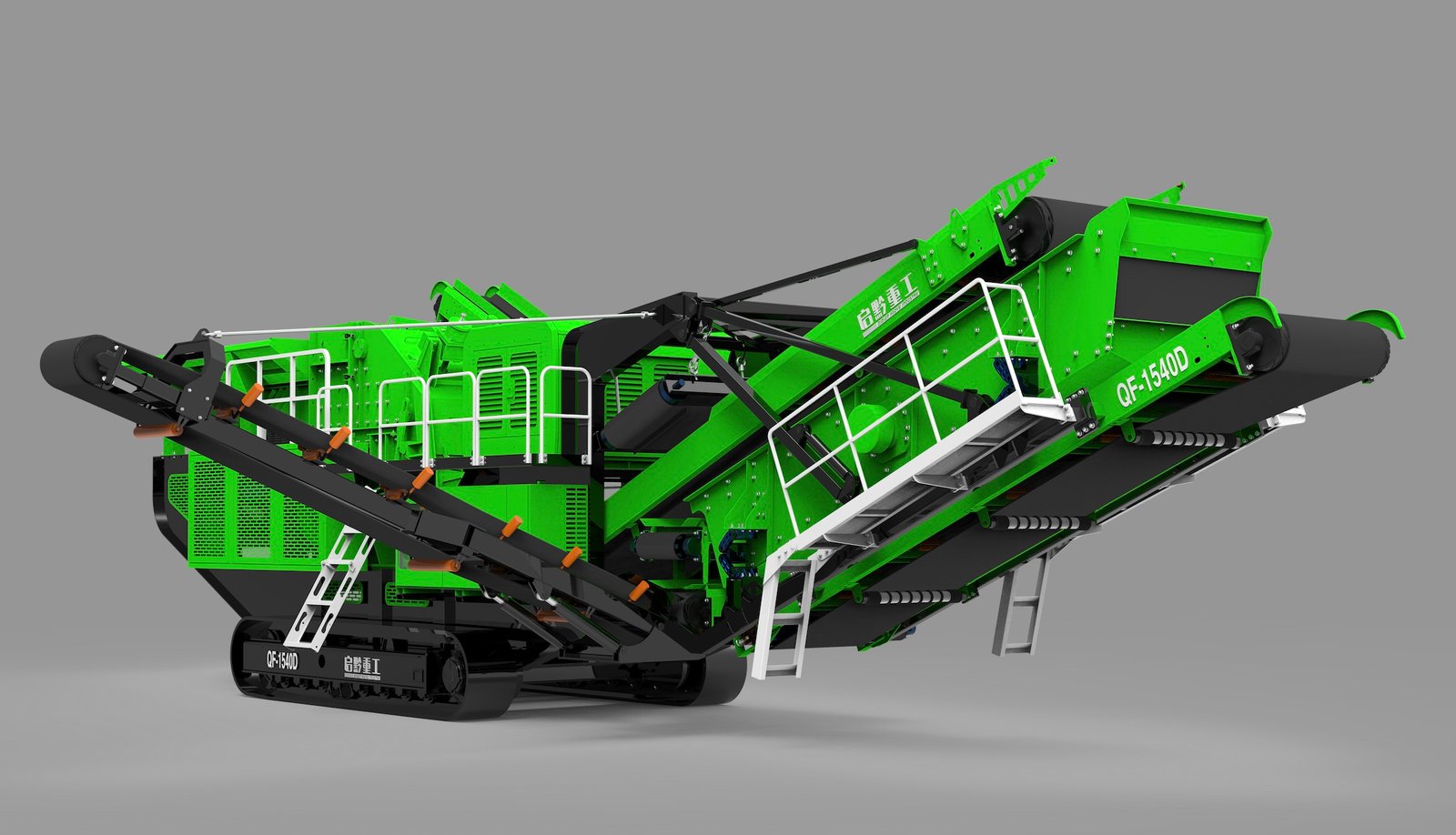

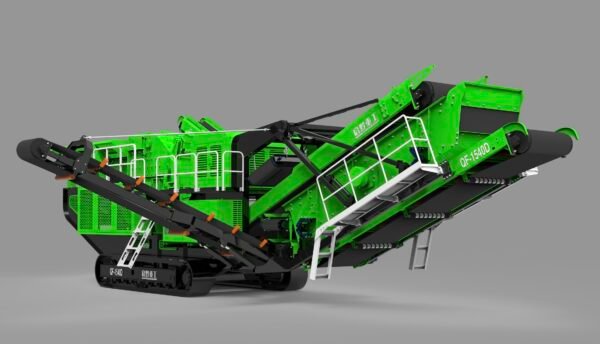

Crawler Mobile Impact Crusher QF-1540
Product parameter table
Standard configuration: External power supply type is simple and efficient, with high reliability and low equipment maintenance and operation costs. Oil-electric dual-purpose equipped with a 400kw engine.
Product model QF-1540
180-350t/h
Processing capacity
Main engine power 315kw
Total power 362kw
Equipment size (length*width*height) 15800*3450*3760mm
Iron remover 4kw
Feed hopper 6kw
Feed port size 1520*1000mm
Vibrating screen 6kw
Main belt 15KW
Finished product belt 7.5kw
Return material transition belt 3kw
Return material belt 5.5kw
Hopper volume 3m3
Total equipment weight 50t
Maximum feed size <800mm (recommended)
Description
Advantages and features
High efficiency of the crushing mainframe
Wear-resistant materials, large feed opening, large crushing chamber, larger feed size, higher output, more stable crushed finished product particle shape. Good crushed finished product particle shape
Adopting HIR heavy-duty integral rotor and C-type plate hammer, the finished material after crushing is uniform and has good particle shape. Foldable super-large silo is easy to operate and maintain
The return screen can be hydraulically adjusted to open, the side belt can be hydraulically adjusted, and it is equipped with all-round platform guardrails for convenient maintenance and quick transfer of operations
Adopting remote intelligent wireless remote control: self-propelled crawler walking, no crane is required, and the flatbed trailer can be directly put on and off through intelligent remote control, which makes transportation and transfer operations extremely convenient. The purpose of the impact crushing station
This product is suitable for coarse and medium crushing of hard materials in mining, water conservancy, transportation, railways, cement, building materials, metallurgy, chemical industry, electricity, construction and other industries, and the material compressive strength does not exceed 150MPa. It has the characteristics of large output, high crushing efficiency, low energy consumption, low wear, high reliability, and excellent product particle shape.
