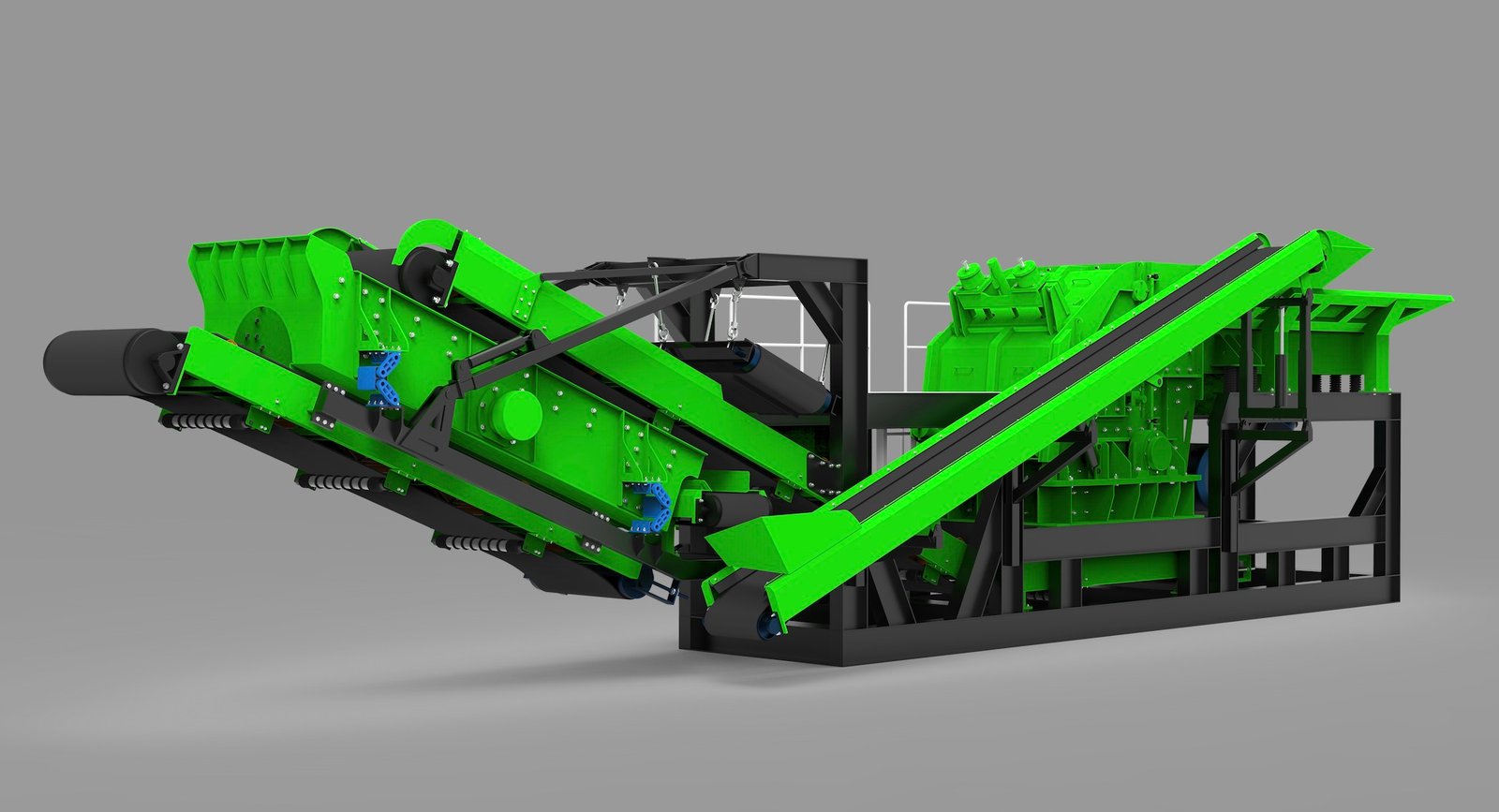

Crawler Mobile Impact Crusher QF-1380G
Product parameter table
Processing capacity 150-230t/h
Main engine power 250kw
Total power 297kw
Equipment size (length*width*height) 15800*3200*3000mm
Iron remover 4kw
Feed hopper 6kw
Main belt 15kw
Feed port size 1380*1000mm
Vibrating screen 6kw
Finished belt 7.5kw
Return material transition belt 3kw
Return material belt 5.5kw
Hopper volume 6m3
Total equipment weight 42t
Maximum feed size <650 (recommended)
Description
Advantages and Features High efficiency of the crushing mainframe
Wear-resistant materials, large feed opening, large crushing chamber, larger feed size, higher output, more stable crushed finished product particle shape. Good crushed finished product particle shape
Using HIR heavy-duty integral rotor and C-type plate hammer, the finished material after crushing is uniform and has good particle shape. Foldable super-large silo is simple and easy to maintain
The coal screen can be hydraulically adjusted to open, the side belt can be hydraulically adjusted, and it is equipped with all-round platform guardrails for convenient maintenance and maintenance. Strong stability and adaptability
Adopting intelligent, integrated and modular configuration, it has strong on-site passability and can quickly adapt to various complex construction environments such as mountains and wetlands. Purpose of impact crushing station
The coarse and medium crushing of materials, the compressive strength of the material does not exceed 150MPa. This product is suitable for hard materials in mining, water conservancy, transportation, railways, cement, building materials, metallurgy, chemical industry, electricity, construction and other industries. It has the characteristics of large output, high crushing efficiency, low energy consumption, low wear, high reliability, and excellent product particle shape.
